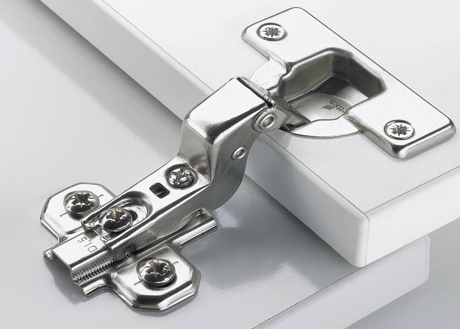

The single pivot hinge for contract applications
- Concealed hinge with Slide-on assembly
- opening angle 95°
- full overlay, half overlay, inset
- For doors 14- 25mm thick
- Cup diameter 35 mm
- Cup depth 11.1 mm
- Integrated overlay adjustment + 0.5 mm / – 2.5 mm
- Integrated depth adjustment + 2 mm / – 2 mm
- Height adjustment at mounting plate
- Material of hinge arm: nickel-plated steel
- Material of hinge cup: nickel-plated steel
| Brand | Hettich |
